Wilson Plus™ Radiolucent Wilson Frame
The Wilson Plus™ Radiolucent Wilson Frame delivers unrestricted radiolucency and C-arm integration with a convenient and stable method of maintaining patients in a flexed position for lumbar procedures.
Read MoreProduct Overview
Common Procedures:
- Lumbar laminectomies
- Decompressions
- Disc surgery
Available in two models for use with:
- Mizuho OSI Modular Spinal Surgery Table System
- General Surgery Tables
Product Photos
-

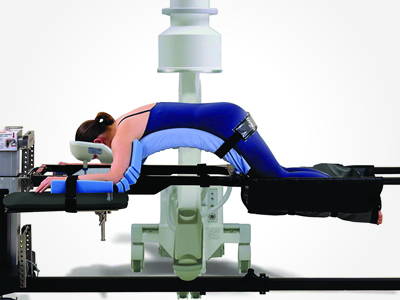

- Wilson Plus™ Radiolucent Wilson Frame
-
- Model 5319G for use with General Surgery Table
-
- Model 5321G for use with Spinal Surgery Table
-

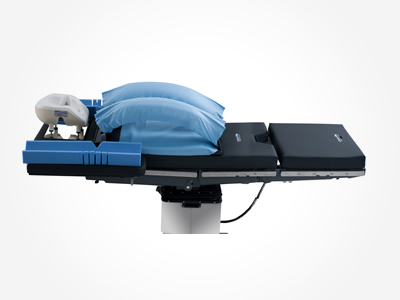

- Model 5319G on Radiolucent Imaging Table
-
- Model 5321G with Storage/Transport Cart
-
- Easy to Use Crank System
-

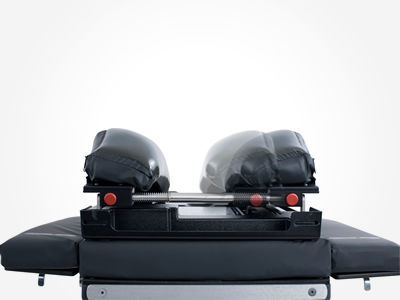

- Laterally Adjustable Pads
-

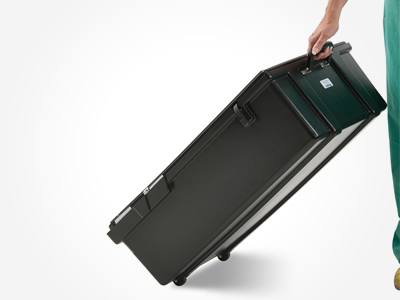

- Model 5319G in Rolling Storage Case
Product Features
- 360 degree radiolucency
- Laterally adjustable, tapered ShearGuard® gel pads
- Lordosis control for improved surgical access
- Easy to use crank system
- Convenient transport and storage of frame
Position Capabilities
- Prone with Lordosis control via flexing the pads
Product Specifications
Patient Weight Capacity: 300 lb. (136 kg.)
Weight of Frame:
5321G 40lbs. (18 kg.)
5319G 36 lbs. (16 kg.)
Lateral Adjustment of Pads: 0”-6” (0 – 15cm)
Intraoperative Flex of Pads for Lordosis Control: 3.5” (8.8cm)
Standard Components
| 5321G | Wilson Plus™ Radiolucent Wilson Frame for Spinal Surgery Top |
| 5319-6 | Crank Handle with Torque Limitor |
| 5319-36 | ShearGuard™ Pads |
| 5321-43 | Wilson Plus™ Radiolucent Wilson Frame Rolling Storage Cart |
| 5878PV-2 | ProneView® Patient Care Kit (pkg. of 2) |
| NW0557 | Owners Manual |
| 5319G | Wilson Plus™ Radiolucent Wilson Frame for use on Radiolucent Imaging Top or General Surgery Table |
| 5319-6 | Crank Handle with Torque Limitor |
| 5319-36 | ShearGuard™ Pads |
| FE00320 | Wilson Plus™ Radiolucent Wilson Frame Rolling Storage Case |
| D28501CE | ProneView® Helmet |
| D28590CE | Adjustable ProneView® Mirror |
| 5322-PV-2 | ProneView® Patient Care Kit (pkg. of 2) |
| NW0557 | Owners Manual |
Optional Accessories
For use with 5321G:
| 10604 | Patient Safety Strap with OrangeAid® Gel Pad |
| 5322PV | ProneView® Patient Care Kits (case of 6) |
| 5319-36 | ShearGuard® Gel Replacement Pad Set (includes right and left pads) |
For use with 5319G:
| 10604 | Patient Safety Strap with OrangeAid® Gel Pad |
| 5855-550 | Safety Strap |
| 5322PV | ProneView® Patient Care Kits (case of 6) |
| 5319-36 | ShearGuard® Gel Replacement Pad Set (includes right and left pads) |
Order Information and Warranty
| 5321G | Wilson Plus™ Radiolucent Wilson Frame for use with Mizuho OSI Spinal Surgery Table |
| 5319G | Wilson Plus™ Radiolucent Wilson Frame for use on Mizuho OSI Radiolucent Imaging Top Mizuho OSI Allegro® or a General Surgery Table |
Warranty: Mizuho OSI guarantees all of its products for a period of one (1) year from date of invoice for defects in material and workmanship with the exception of products which are misused, altered or damaged.
