Allegro®
For Progressive Minimally Invasive Image-Guided Procedures
The Allegro® is an advanced imaging table with 2 speed proportional, 4-way motorized table top movement. It offers the surgeon precise control, superior imaging, optimum patient safety and excellent surgical access.
Read MoreProduct Overview
Specialties:
- Orthopedic
- Vascular
- Endovascular
- Cardiovascular
- Pain Management
Product Photos
-

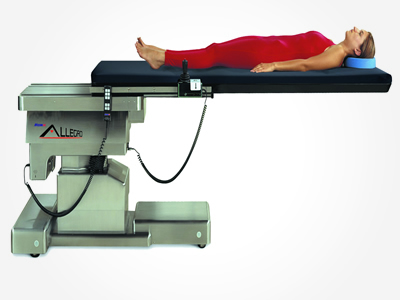

- Allegro®
-

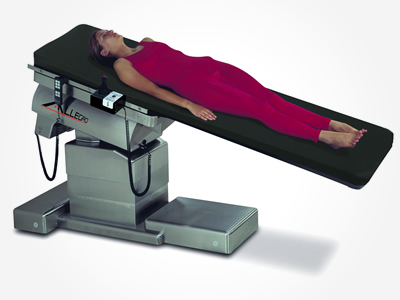

- Supine Positioning / Cantilever End
-
- Supine Positioning / Pedestal End
-
- 2-Speed Joystick Controller
-

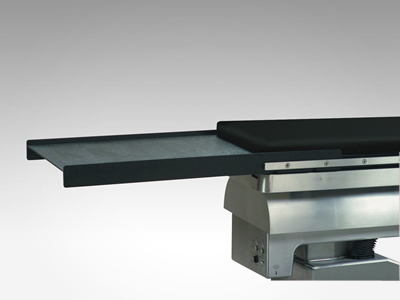

- Stent Tray Attaches to Table Top
Product Features
- 2 speed proportional, 4-way motorized table top movement with full patient load at any angle
- Motorized table top movement ensures the user does not need to meet any physical requirements to travel the table top. There is no need to manually (float) push or pull the table top
- 2 speed Joystick Controller – mounts on either side of table for ease of use
- Flexibility in patient positioning- supine, prone and lateral
- Edge to edge radiolucency
- Excellent C-arm and O-arm® access
- High stability, allowing patient head orientation at either end with 450 lb. ( 205 kg.) patient weight capacity
- Electric floor locks
- AC or battery operation
- Hand Pendant can be connected to either the front or back of the pedestal of the table
- Hand Pendant controls Height, Lateral Tilt(roll) and Trendelenburg/Reverse Trendelenburg and Table Top Travel at a single speed, Return to Level, Top Home
- Tempur-Pedic® Medical table pad technology
- Swivel Mount for Hand Pendant – allows pendant to be mounted horizontally
O-arm® is a registered trademark of Medtronic, Inc.
Positioning Capabilities:
- Supine
- Prone
- Lateral
Product Specifications
| Height Range | 30 in. – 40 in. (76 cm. – 102 cm.) |
| Trendelenburg/Reverse Trendelenburg | 15 Degrees |
| Lateral Tilt (roll) | 20 Degrees |
| Motorized, Table Top Travel | |
| Longtitudinal Travel | 21 in. (53 cm.) |
| Lateral Travel | 10 in. (25 cm.) |
| Table Top Length | 86 in. (218 cm.) |
| Table Top Width | 21 in. (53 cm.) |
| Clear Imaging Area | 50 in. (127 cm.) |
| Total Imaging Area | 71 in. (180 cm.) |
| Weight Capacity | 450 lb (205 kg) |
Standard Components
| 6800-7140 | Tempur-Pedic® Medical 2 in. (5cm) Table Pad |
| 6800-280 | Joystick Controller, 2-speed |
| 6807-3 | Hand Pendant |
| 6800-290 | Swivel Mount |
| 9600-787 | Velcro® Restraint Straps (2) |
| 6800-3000 | Allegro® Table Cover |
| NW0510 | Owner’s Manual |
Optional Accessories
| 6900-12 | Radiolucent Single Arm Board w/ Pad |
| 6900-20 | Auxiliary Clamp |
| 6900-21 | Stent Tray |
| 6900-23 | Rail Mounted IV Pole |
| 6900-25 | Radiolucent AV Fistula Board w/ Pad |
| 6800-350 | Drape Rod |
| 6900-51 | Universal Foot Board w/ Pad |
Order Information and Warranty
| 6800 | Allegro® Mobile Imaging Table | 120 VAC 60 Hz |
| 6800I | Allegro® Mobile Imaging Table | 230 VAC 50 Hz |
Warranty: Mizuho OSI guarantees all of its products for a period of one (1) year from date of invoice for defects in material and workmanship with the exception of products which are misused, altered or damaged.
