Radiolucent Imaging Top with Advanced Control Base

Radiolucent Imaging Top

For Unrestricted C-Arm Use with Anterior/Posterior, Lateral and Oblique Intra-operative Imaging

The Radiolucent Imaging Top with its carbon fiber construction provides complete radiolucency and allows for unrestricted C-arm integration when mounted on the Advanced Control Modular Base. It easily supports a patient in the supine, lateral or prone position.

Read More

Product Overview

When the Spinal Surgery Top is utilized in conjunction with the Radiolucent Imaging Top a patient can be easily repositioned from supine to prone without physically removing them from a table top.

Application* Flexibility:
- Anterior Cervical Surgery
- Catheter Placement
- Pelvic/Acetabular Reconstruction
- Vascular Procedures
- Kyphoplasties
- Cardiac Angioplasty
- Laminectomies
- Decompressions
- Pain Management
- Joint Imaging
- Intradiscal Electrothermal Therapy (IDET)
- Myelography

*Utilization of optional accessories with the table top may be required

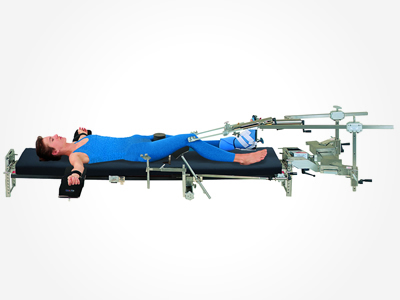

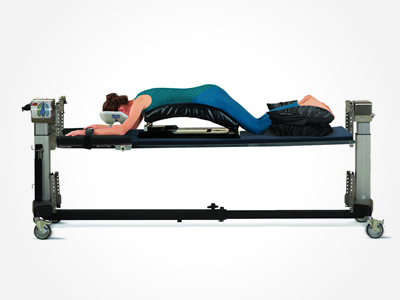

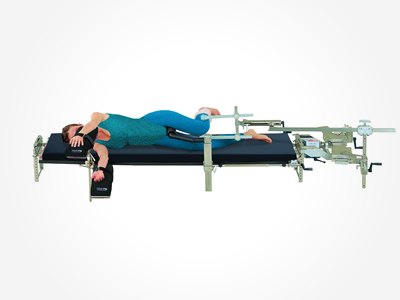

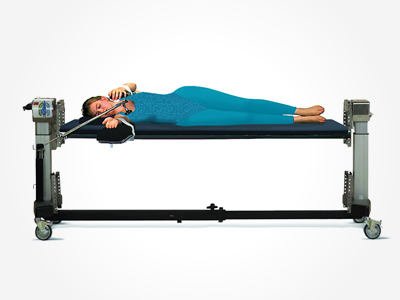

Product Photos



Product Features

- Complete radiolucency – carbon fiber table top with Tempur-Pedic® Medical pad
- Unrestricted C-arm and O-arm® integration
- Application flexibility – full body support allows flexible procedural capability
- Lateral Tilt (25 degrees) in both directions
- Hand Pendant of the Advanced Control Base on which the Radiolucent Imaging Top mounts on controls Height, Lateral Tilt(roll) and Trendelenburg/Reverse Trendelenburg
- Complete pelvic surgery positioning* – prone, supine and lateral w/traction if required
- Utilize Wilson Plus™ Radiolucent Wilson Frame* for 360 degree radiolucency
- 360 degree patient rotation when used in conjunction with the Spinal Surgery Top

*utilization of optional accessories required

O-arm® is a registered trademark of Medtronic, Inc.

Positioning Capabilities:
- Supine
- Prone
- Lateral

Product Specifications

Height Range 27in. – 48 in. ( 69 cm. – 122 cm.)
Lateral Tilt (roll) 25 degrees
Trendelenburg/Reverse Trendelenburg 10 degrees
Patient Weight Capacity 500 lbs. (227 kg.)
Table Top Length 84 in. (213 cm.)
Table Top Width 21.5 in. (55 cm.)
Modular Base Length 102 in. (259 cm.)
Length of Base Retracted 64 in. (163 cm.)
Modular Base Width 32 in. (81 cm.)

Standard Components

5840-7028 Tempur-Pedic® Medical Table Top Pad 2 in. (5 cm.)
5855-550 Patient Safety Strap
5927-3000 Imaging Table Cover
NW0504 Owner’s Manual (includes Spinal Surgery Top and Radiolucent Imaging Top)

Optional Accessories

6977-959 Universal Side Rail Adaptor provides 6 in. (15 cm.)
5319G Wilson Plus™ Radiolucent Wilson Frame w/ ShearGuard® Gel Pads
5322PV Patient Care Kit w/ ProneView® for RWF, 6/cs
5848 Pelvic Reconstruction Kit w/Traction Arc
5847-07 Pelvic Reconstruction Kit Cart
5879-2 Anterior Extension Positioner Pad w/ Inflatable Bladder
5979-1 Cervical Management Base Unit
5356 Pivoting Arm Board w/Tempur-Pedic® Medical Pad
5857 Cross Arm Support w/ Tempur-Pedic® Medical Pad
5364 Lateral Arm Board w/ Tempur-Pedic® Medical Pad
5393 Clark Socket
5394 Aluminum Side Rail Socket
5300 Lateral Positioner
5301 Deluxe Lateral Positioner
6900-51 Universal Footboard w/ Tempur-Pedic® Medical Pad
6835-8 Well Hip Fixation Frame 8mm (for use with Stryker System)
6835-10 Well Hip Fixation Frame 10mm (for use with Synthes System)
6946 Tempur-Pedic® Medical Positioning Pillow (standard)
6947 Tempur-Pedic®  Medical Positioning Pillow (large)

Order Information and Warranty

5927 Radiolucent Imaging Top w/ Tempur-Pedic® Medical Pad
5803 Advanced Control Modular Base 120 VAC 60 Hz
5803I Advanced Control Modular Base 230 VAC 50/60 Hz
5803J Advanced Control Modular Base 100 VAC 50/60 Hz

Order both the Radiolucent Imaging Top and the Advanced Control Modular Base to receive the Radiolucent Imaging Table System.



Warranty: Mizuho OSI guarantees all of its products for a period of one (1) year from date of invoice for defects in material and workmanship with the exception of products which are misused, altered or damaged.
