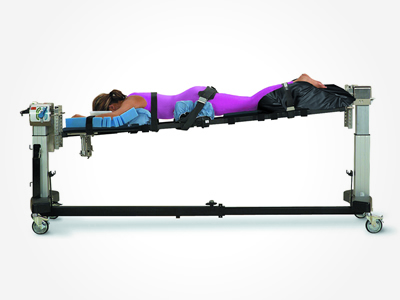

Spinal Surgery Top with Advanced Control Base

Spinal Surgery Top

Spinal Surgery Positioning with Exceptional C-arm and O-arm® Access

As part of the Mizuho OSI Modular Table System, the Spinal Surgery Top with its open frame design and individual positioning pads mount on the Advanced Control Modular Base and support the patient in the prone position for spinal surgery. When the Spinal Surgery Top is utilized in conjunction with the Radiolucent Imaging Top a patient can be easily repositioned from supine to prone.

Read More

Product Overview

Common Procedures:
- Anterior/Posterior Fusions – cervical to sacrum
- Surgical Correction of Deformities
- Laminectomies
- Decompressions
- Kyphoplasties
- Osteotomies

Product Photos



Product Features

- Carbon fiber frame provides complete radiolucency
- Unrestricted C-arm and O-arm® access
- 360 degree patient rotation when used in conjunction with the Radiolucent Imaging Top
- Lateral Tilt (25 degrees) in both directions
- Hand Pendant of the Advanced Control Base on which the Spinal Surgery Top mounts controls Height, Lateral Tilt(roll) and Trendelenburg/Reverse Trendelenburg
- Open frame reduces vena cava compression, minimizes epidural venous bleeding and improving visualization at the surgical site
- Customized support pads enhance positioning patients with varying body types
- Advanced Control Pad System™ with Tempur-Pedic® Medical technology automatically delivers periodic massage action to hip and thigh pressure points
- ProneView® Protective Helmet System
- Cervical Traction Vector maintains the alignment of the traction rope when using a Head Halter or Gardner Wells Tongs.



O-arm® is a registered trademark of Medtronic, Inc.



Positioning Capabilities:
- Prone
- Supine (Mount Short Supine Operating Top on frame)

Product Specifications

Height Range 27 in. – 48 in. (69cm. – 122 cm.)
Lateral Tilt (roll) 25 degrees
Trendelenburg/Reverse Trendelenburg 10 degrees
Patient Weight Capacity 500 lbs. (227 kg.)
Table Top Length 84 in. (213 cm.)
Table Top Width 17 in. ( 45 cm.)
Modular Base Length 102 in. (259 cm.)
Length of Base Retracted 64 in. (163 cm.)
Modular Base Width 32 in. (81 cm.)

Standard Components

5840-389 Cervical Traction Vector
5840-277 Patient Head Support (face plate)
5840-7569 Tempur-Pedic® Medical Single Chest Pad
5840-580 Single Chest Pad Mounting Bracket
5579 Articulating Arm board w/Mounting Brackets & Pad (2)
5840-24 Leg Board w/ Pad (2)
5840-450 Leg Sling
5996 Advanced Control Pad System™ w/ Mizuho OSI Tempur-Pedic® Medical Technology (8 pad set)
5996-12 Quick Connect ACP Tubing (1 cs.)
5840-45 Buttock Strap
5840-43 60” Leg Strap (2)
5840-44 90” Leg Strap (4)
D28705CE ProneView® Protective Helmet System
5808PV-2 Patient Care Kit w/ ProneView® 3/pkg.
5864 Modular Equipment Cart w/ Cover
5943-3000 Spinal Surgery Table Cover
NW0678 Spinal Surgery Top Owner’s Manual

Optional Accessories

5888 Retractor Adaptor
5840-820 Dual Chest Pads, 1 pr.
5321G Wilson Plus™ Radiolucent Wilson Frame for the Spinal Surgical Frame w/ ShearGuard® Gel Pads
5322PV Patient Care Kit w/ ProneView® for RWF, 6/cs
5808PV Patient Care Kit w/ ProneView® for Spinal Surgical Top, 6/cs
5979-300 Radiolucent DORO® Adaptor for the Cervical Management Base Unit
5979-200 Radiolucent Mayfield® Adaptor for the Cervical Management Base Unit
5873 Coupler II Assembly
5873-300 Radiolucent DORO® Adaptor for the Coupler II
5846 Spinal Top Adaptor Brackets, 1 pr. (required to mount the 5873 Coupler II)
5879 Complete Cervical Management
5979-1 Cervical Management Base Unit, (5880-09 Supine Top and 5879-2 Anterior Extension Positioner)
5880-09 Supine Operating Top, short
5879-2 Anterior Extension Positioner w/ bladder
6910-3003 DORO® Skull Clamp, Aluminum
6910-3034 DORO® Skull Clamp, Radiolucent
6946 Tempur-Pedic® Medical Positioning Pillow (standard)
6947 Tempur-Pedic® Medical Positioning Pillow (large)

DORO® is a registered trademark of pro med instruments GmbH.

Mayfield® is a registered trademark of Schaerer Mayfield USA, Inc.



Order Information and Warranty

5943 Spinal Surgery Top w/Shearguard Pads
5943AP Spinal Surgery Top w/ Advanced Control Pad System™ 100/120V ~ 50/60Hz
5943API Spinal Surgery Top w/ Advanced Control Pad System™ 220/230V ~ 50/60Hz
5927 Radiolucent Imaging Top w/ Tempur-Pedic® Medical Pad
5803 Advanced Control Modular Base 120V ~ 60Hz
5803I Advanced Control Modular Base 220/230V ~ 50/60Hz
5803J Advanced Control Modular Base 100V ~ 50/60Hz

To perform patient rotations, order the Spinal Surgery Top, the Radiolucent Imaging Top and the Advanced Control Modular Base to receive the Spinal Table System.
For only prone patient positioning, order the Spinal Surgery Top and the Advanced Control Modular Base to receive the Spinal Surgery Table.



Warranty:   Mizuho OSI guarantees all of its products for a period of one (1) year from date of invoice for defects in material and workmanship with the exception of products which are misused, altered or damaged.
