Open Frame

Insite®

A Multi-Procedural Surgery Table with Superior Imaging Access and Excellent Surgical Access

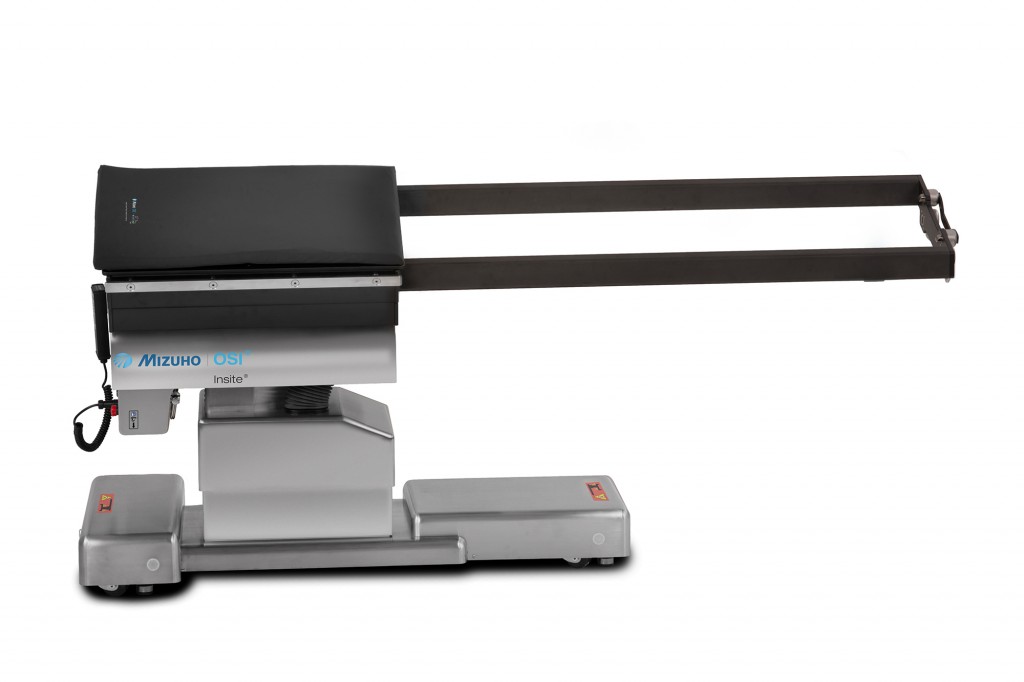

Dedicated to giving surgeons better imaging access to their patient during many types of procedures, including those requiring total access to the spine. Insite® offers a radiolucent, cantilevered frame equipped with customizable positioning pads and components.

Read More

Product Overview

Unobstructed Imaging:  55” (140 cm) No Metal Zone

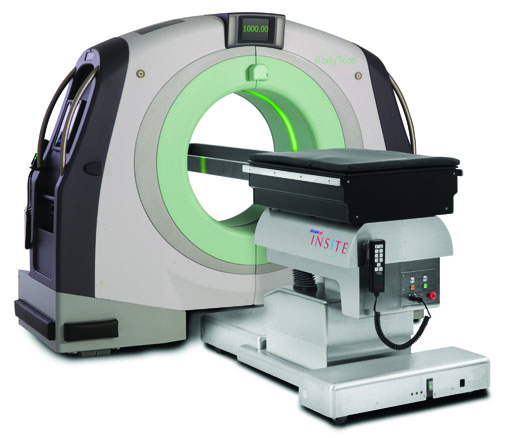

Interfaces with the BodyTom®, a portable, full body, multi-slice CT scanner

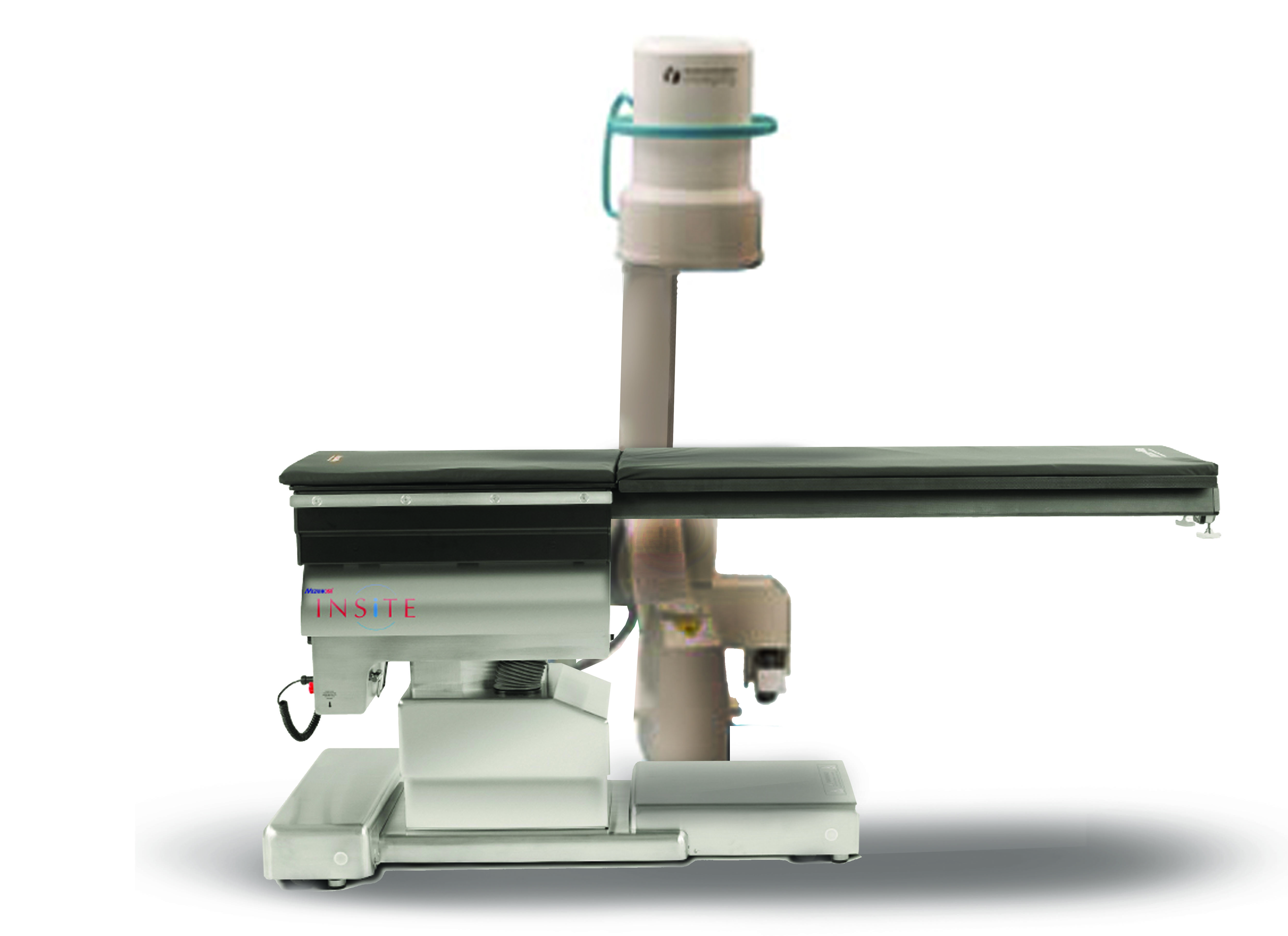

Unrestricted O-arm® and C-arm access

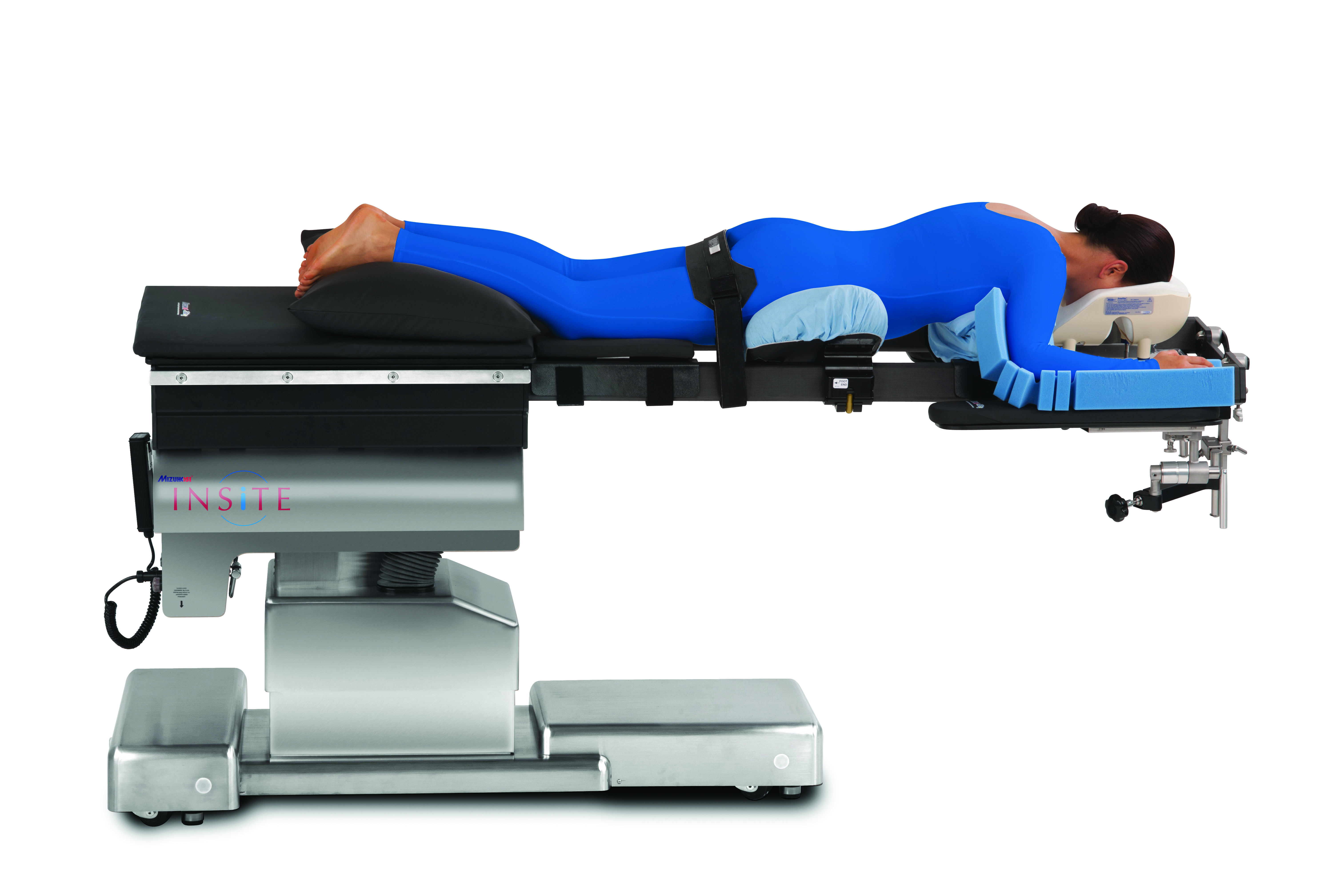

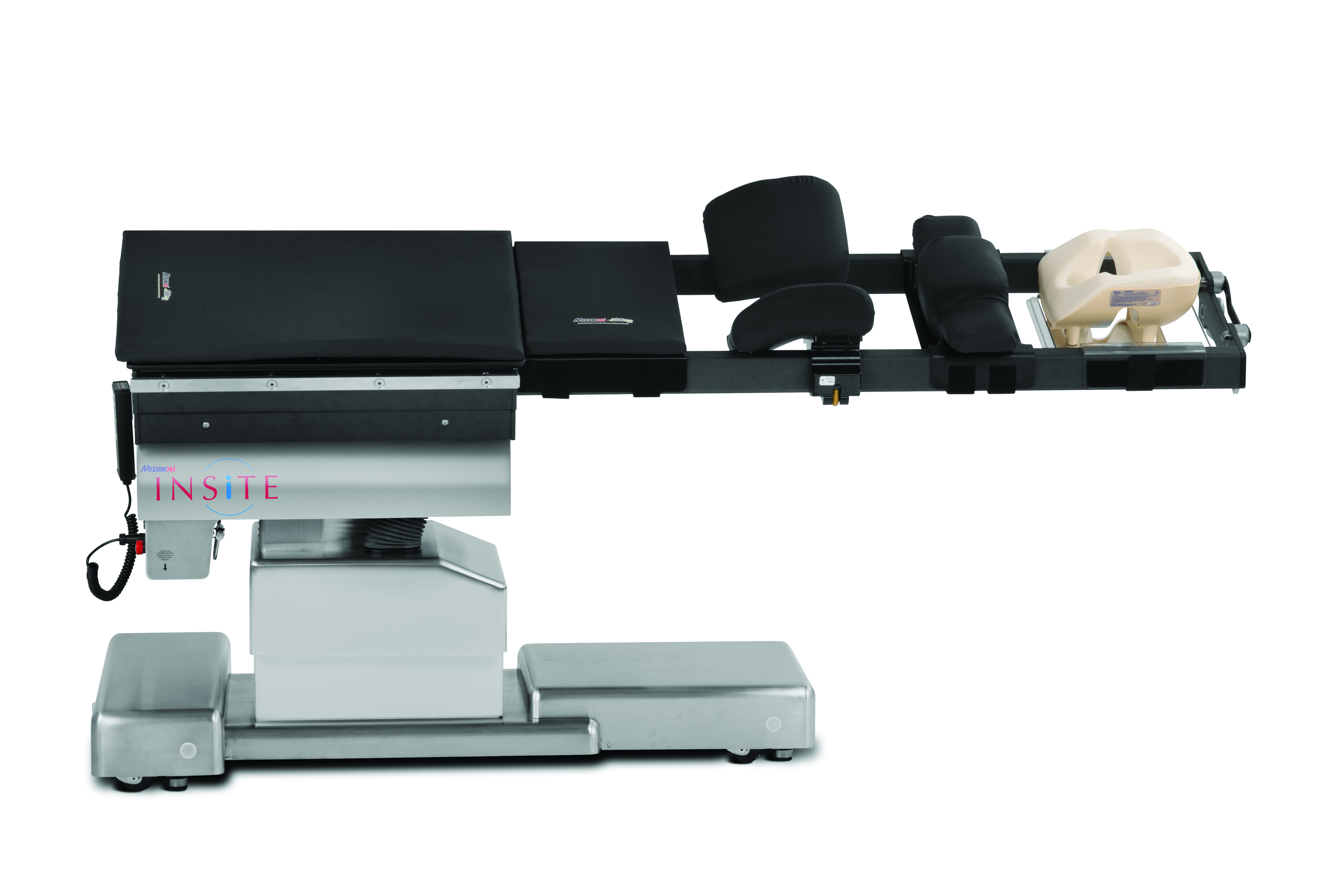

Prone Positioning Advantages:

– Total spine access

– Open frame design reduces vena cava compression, minimizes bleeding, improves visualization at the  surgical site

– Customizable pad and component placement to meet individual patient needs

Positioning Flexibility:

– Patient head orientation can be at the cantilever or the pedestal end

Procedures:

  • Spine:  Cervical to Sacrum prone positioning on open frame
  • Orthopedic:  Foot/Ankle, trauma where traction is not required – positioning on Supine Top
  • Pain Management
  • General Surgeries without flex required
  • Imaging procedures utilizing the BodyTom®, O-arm® or 3D C-arm

BodyTom® is a registered  trademark of NeuroLogica Corp.; O-arm® is a registered trademark of Medtronic, Inc.

Product Photos

Product Features

  • Cervical Mounting Device permits cranial stabilization options
  • 5-way articulating armboards easily remove or pivot out of the way for prone patient transfer

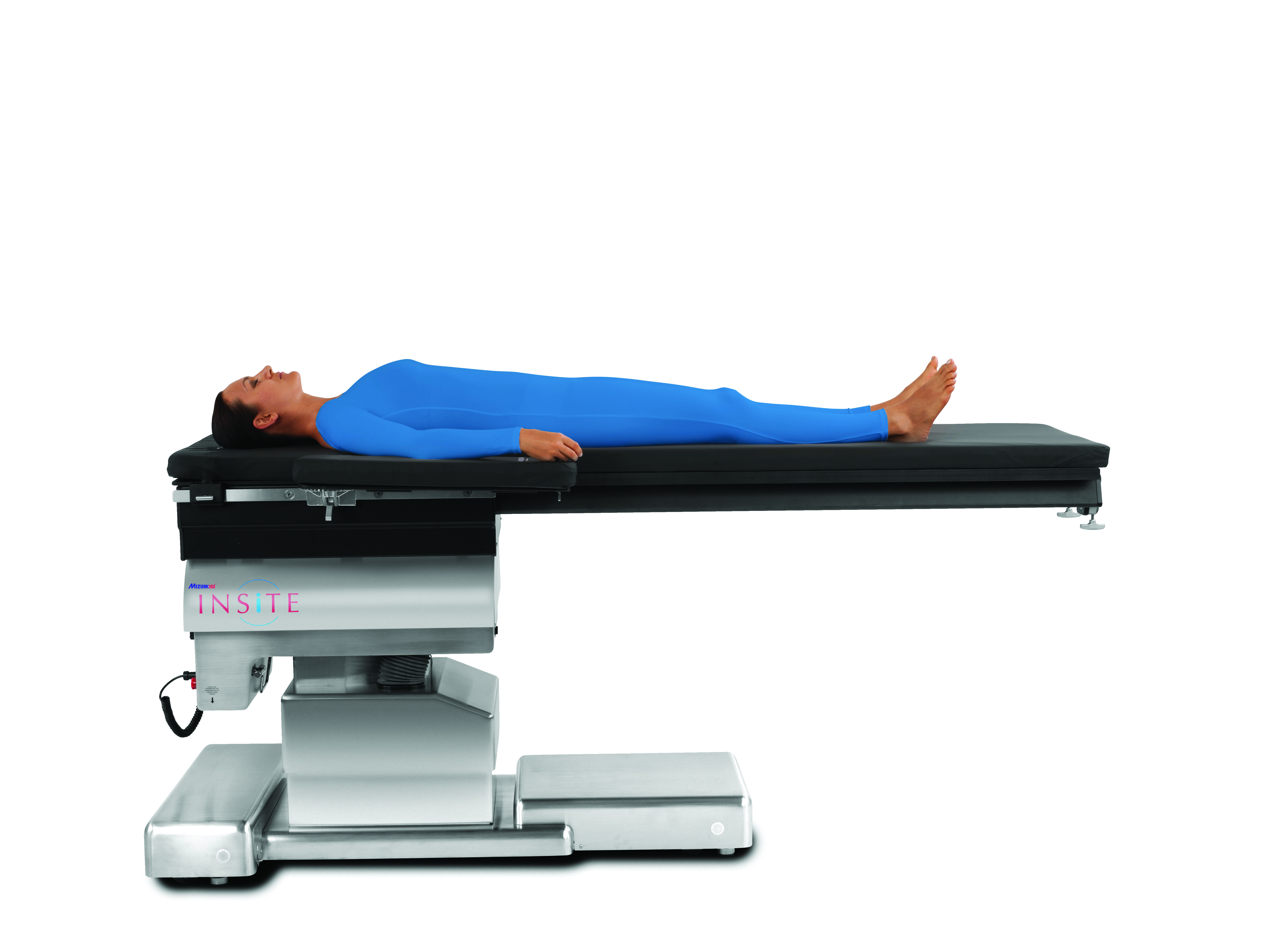

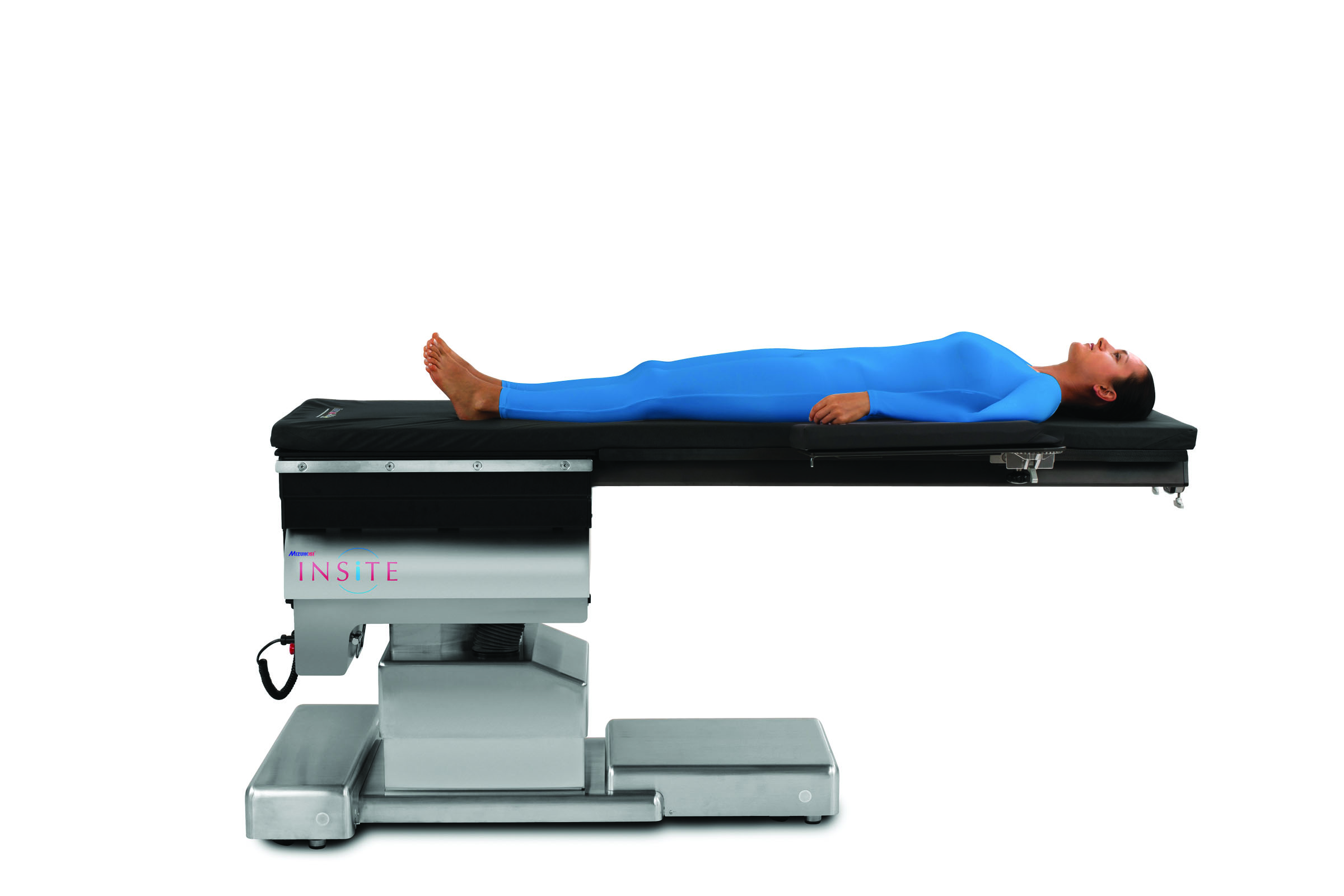

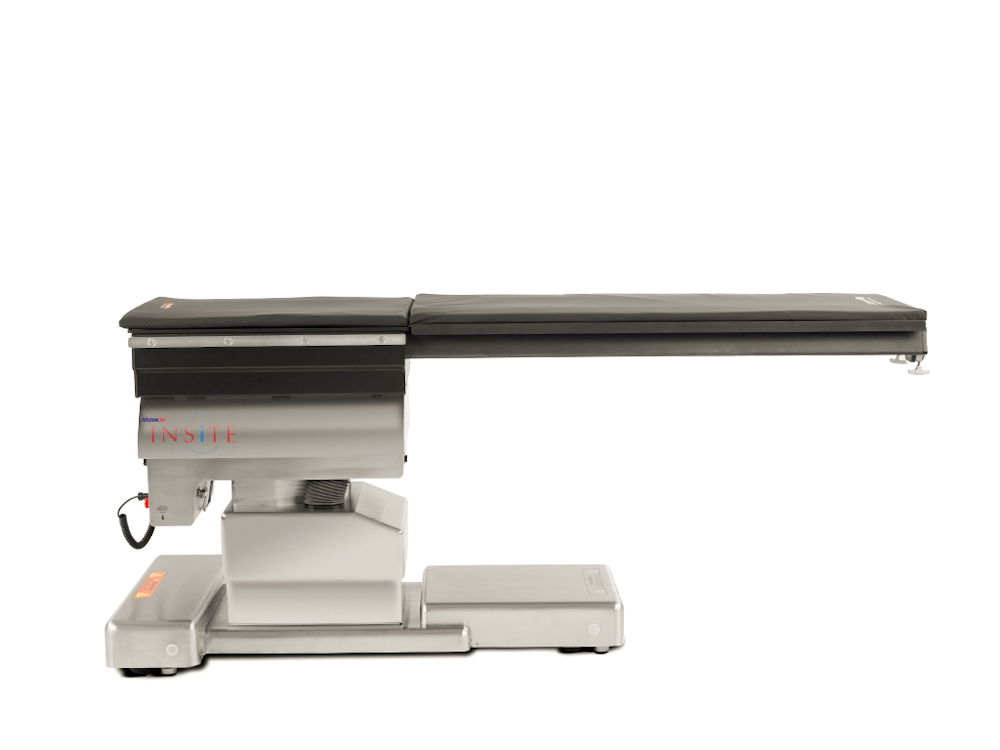

  • One piece, carbon fiber Supine Top converts the open frame for supine and lateral positioning
  • Universal Side Rail Adapter and Retractor Adapter for mounting ancillary equipment
  • ProneView® Protective  Helmet System offers head and eye protection for the prone patient
  • Tempur-pedic® Medical Pad technology incorporated into all patient surfaces
  • Backlit Hand Pendant controls all table functions; Floor Locks, Height, Lateral Roll, Tren/Rev Tren and Return to Level
  • Self Compensating, Power Floor Locks
  • Stainless Steel Shrouded, Low Profile Base
  • AC or Battery Operated
  • Emergency Stop
  • Emergency Floor Lock Override System
  • Standard OR Accessory Rails on Pedestal End

Positioning Capabilities:

  • Prone
  • Supine
  • Lateral

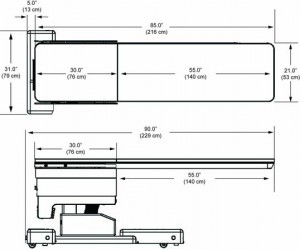

Product Specifications

Total Table Length 90 in. (229 cm)
Table Top Length 85 in. (216 cm)
Pedestal Top Width 21 in. (53 cm)
Pedestal Top Length 30 in. (76 cm)
Imaging Area Length 55 in. (140 cm)
Imaging Area Width 21 in. (53 cm)
Height Range  32 in. – 42 in. (81 cm – 107 cm)
Trendelenburg / Reverse Trendelenburg  15°
Lateral Roll (Tilt)  ± 20°
Patient Weight Capacity  450 lbs (205 kg)

Standard Components

6844-153 Insite® Hand Pendant
6844-140 Arm Board Mounting Bracket
6844-172 Pedestal End Arm Board Mounting Bracket
6988-530 Articulating Arm Board w/ Pad
6844-132 Insite® Crossbar
6844-119 Cervical Mounts
6844-146 Face Plate
D28580CE Re-usable ProneView® Mirror Platform with Post Holes
D28502CE Re-usable ProneView® Adjustable Protective Helmet
6844-170 Insite® Chest Pad
6844-144 Chest Support Plate
6844-163 Contoured Hip Pad, Left
6844-162 Contoured Hip Pad, Right
6977-739 Buttocks Strap
6844-148 Leg Board w/Pad
6977-939 Retractor Adapter
6844-169 Supine Top w/ Pad
6977-959 Universal Side Rail Adapter (2)
9600-787 Patient Safety Strap (2)
6844-30 Table Cover

Optional Accessories

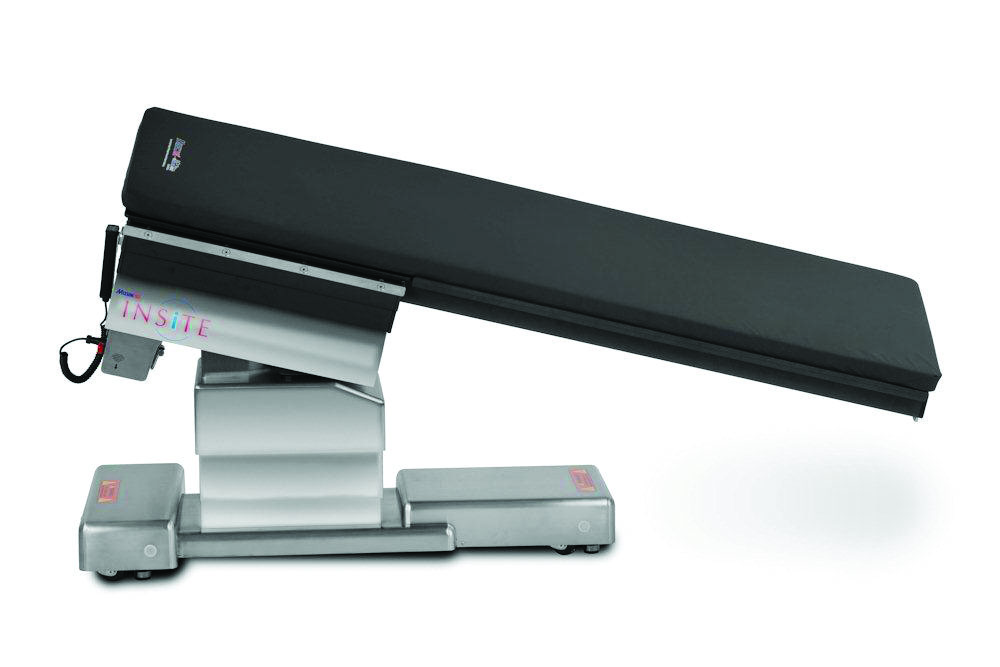

6800-7140 Tempur-Pedic® Medical 2 in. (5 cm) Full Table Top Pad
6950 Tempur-Pedic® 6 pc. Positioning Pad Set
6844PV Insite® ProneView® Patient Care Kit, 6/cs
6747 Insite® GentleTouch® Patient Care Kit, 6/cs
5873 Coupler II
6910-4004 DORO® Radiolucent Skull Clamp
6910-1001 Radiolucent DORO® QR3 Aluminum Skull Clamp
5873-300 Radiolucent DORO® Adapter for the Coupler II
 6844-315 Leg Board Extension
 5356 Pivoting Arm Board w/ 2 inch Tempur-Pedic® Pad
 69441 1-inch Tempur-Pedic® Arm Board Pad
 5393 Clark Socket
 5300 Lateral Positioner Set
5301 Deluxe Lateral Positioner Set
5394 Aluminum Side Rail Socket
5364 Lateral Arm Board Unit
6900-23 Rail Mounted I.V. Pole
6800-350 Drape Rod
6900-51 Universal Foot Board
6800-290 Swivel Mount for Hand Pendant
6946 Tempur-Pedic® Medical Positioning Pillow (Standard)
6947 Tempur-Pedic® Medical Positioning Pillow (Queen)

Order Information and Warranty

6844  Insite® Surgery Table 120V, 60Hz
6844I  Insite® Surgery Table 220/230V, 50/60Hz
6844J  Insite® Surgery Table 100V, 50/60Hz

Warranty:  Mizuho OSI guarantees all of its products for a period of one (1) year from date of invoice for defects in material and workmanship with the exception of products which are misused, altered or damaged.
