hana®
A Superior Table for Orthopedic Procedures Including Anterior Approach to Total Hip Arthroplasty (AATHA)
The hana® is a state of the art fracture table that optimizes the Anterior Approach to Total Hip Arthroplasty (AATHA). Its unique patient positioning capabilities enable the surgeon to replace the hip through a single incision, Anterior Approach without detachment of muscle from the pelvis or femur.
Read MoreProduct Overview
The hana® table allows for safe hyperextension, adduction and external rotation of the leg, incorporating the patented femoral lift and support system enhancing femoral exposure for improved component placement – a positioning option not possible with conventional surgery tables. The Anterior Approach to Total Hip Arthroplasty (AA THA) has become the procedure of choice for many surgeons and patients alike. Since 2005, the hana® Orthopedic Table has been used to successfully position patients in thousands of these procedures. Knowing it is a vital instrument for the procedure, surgeons are reluctant to attempt the AA THA without a hana® Table.
Ideal hana® procedure and applications:
- Anterior Approach Total Hip Arthroplasty
- Hip Arthroscopy
- Anterior Hip Resurfacing
- Femur Fracture
- IM Nailing Femur
- Hip Fracture
- Hip Pinning
- Tibia Fracture
- IM Nailing Tibia
- Total Knee Arthroplasty
Product Photos
-

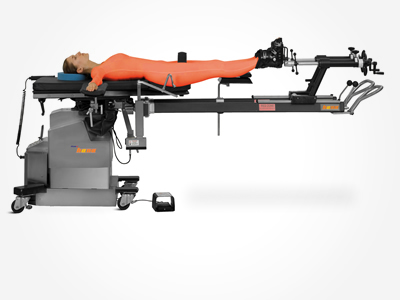

- Supine Position for Anterior Approach Total Hip Arthroplasty
-
- IM Nailing of the Femur: Lateral Decubitus Position with Bilateral Skin Traction
-

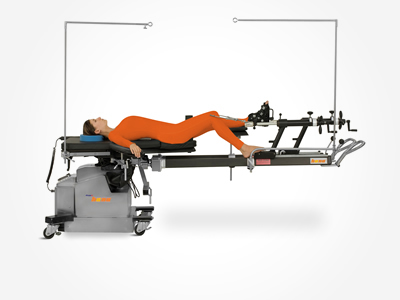

- IM Nailing of the Femur: Supine with Unilateral Skeletal Traction
-
- Hip Pinning: Supine with Bilateral Skin Traction
-

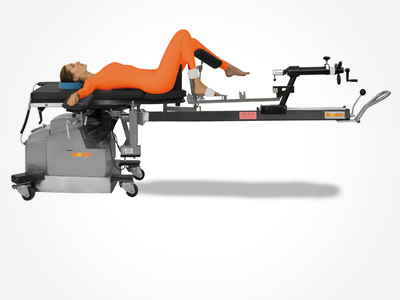

- Total Knee Arthroplasty Supine Position
Product Features
- Carbon Fiber Table Top
- Auxiliary Control
- Manual Floor Locks
- Physician Controlled Foot Pedal
- Accessory Side Rails
- Stainless Steel Base
- Lightweight Spars
- AC or Battery Operation
- Replaceable Control Module
- Spherical Spatial Positioning System SSPS™
Positioning Capabilities:
- Supine
- Lateral
Product Specifications
| Table top length | 48.5 in. (123 cm) |
| Table length w/ spars | 124 in. (315 cm) |
| Table top width | 21.5 in. (55 cm) 10in. (25 cm) near perineal post |
| Table top to height range | 30 in. – 50 in. (76 cm-127 cm) |
| Trendelenburg / Reverse Trendelenburg | 12° |
| Lateral tilt | 12° |
| Leg spar articulation | 28° up 35° down– 20° adduction 45° abduction |
| Patient weight capacity | 450 lbs. (205 kg) |
| Voltage Requirements | 100VAC 50/60Hz, 120VAC 60Hz, 230VAC 50Hz |
Standard Components
| 6807-4 | Hand Pendant |
| 6850-144 | Femoral Hook Classic, Right (1) |
| 6850-140 | Femoral Hook, Left (1) |
| 6850-918 | Femoral Hook New, Right (1) |
| 6850-919 | Femoral Hook, Left (1) |
| 6850-110 | Femoral Hook Support Assembly (2) |
| 6875-264 | Femur Lift Extension (2) |
| 6875-601 | Femur Lift, Left |
| 6875-600 | Femur Lift, Right |
| 6875-5003 | Femur Lift Foot Pedal |
| 6875-399 | Traction Hook Extension (2) |
| 6875-230 | Total Knee Flexion and Support System™ |
| 6875-201 | Well Leg Support Adaptor |
| 5855-838 | Well Leg Support |
| 6300-92 | Articulating Bracket |
| 6875-350 | Radiolucent Leg Spars, Right |
| 6875-360 | Radiolucent Leg Spars, Left |
| 6850-485 | Traction Boot Small Pair |
| 6850-486 | Traction Boot Large Pair |
| 6875-292 | Arm Boards with Pad (2) |
| 6875-250 | Lateral Perineal Post and Pad Assembly |
| 6850-413 | Perineal Post and Pad, Adult |
| 5840-44 | Patient Safety Strap (90″) |
| 6875-20 | hana® Table Cover |
| 2 in. (5 cm) | Tempur-Pedic ® Medical Table Top Pad |
Optional Accessories
| 6875-500 | hana® Cart |
| 6850-170 | Lower Leg Support |
| 5855-61 | Accessory Clamp |
| 6850-487 | Traction Boot X-Large Pair |
| 6875-2761 | hana® Optional Fracture Kit |
| 5857 | Cross Arm Support |
| 5393 | Clark Socket |
| 5855-411 | Tibial Traction Upright |
| 6850-25 | Tibia Traction Boot Adaptor |
| 5855-345 | Traction Unit |
| 5855-440 | Traction Foot Plate |
| 3369 | Hip Arthroscopy Perineal Post 6″ |
Order Information and Warranty
| 6875 | hana® Hip and Knee arthroplasty table | 120 VAC 60 Hz |
| 6875I | hana® Hip and Knee arthroplasty table (International) | 230 VAC 50 Hz |
| 6875J | hana® Hip and Knee arthroplasty table (Japan) | 100 VAC 50/60 Hz |
Warranty: Mizuho OSI guarantees all of its products for a period of one (1) year from date of invoice for defects in material and workmanship with the exception of products which are misused, altered or damaged.
