Modular Table System (MTS)

Modular Table System (MTS)

Originally known as the Jackson Table, the Modular Table System is a versatile system for spine, imaging and orthopedic trauma procedures.

Modular table system components:

  • Advanced Control Base Part #5803
  • Spinal Surgery Top Part #5943
  • Radiolucent Imaging Top Part #5927
  • Orthopedic Trauma Top Part #5855
  • Pelvic Reconstruction Kit #5848
A reliable, efficient and versatile table system

With over 8,000 units sold worldwide, the Modular Table System (MTS) delivers precise and stable positioning, with interchangeable tops for spine, imaging and orthopedic trauma procedures. Part of the original modular system, the Spinal Surgery Top offers the classic open frame design for posterior spinal surgery, while the Radiolucent Imaging Top provides a platform that supports a variety of procedures requiring supine and lateral positioning. When used together, these two tops can facilitate a patient being repositioned from prone to supine through the System’s 180 degree rotation capabilities. The third modular piece, the Orthopedic Trauma Top, provides complete surgery positioning for lower trauma extremity procedures. Each modular top is constructed of carbon fiber, providing excellent radiolucency for unobstructed imaging.

Each top works with the Advanced Control Base and can be purchased individually or as a set.

Product features

http://marjodesign.com/?korol=femme-roumaine-cherche-travaille&c82=79 Advanced Control Base

  • Works with three interchangeable tops, specifically designed to support patient positioning in a variety of procedures
  • Dual column design for easy C-arm and O-arm® access
  • Retractable I-beam, for easy storage
  • AC and battery operation
  • Powered lateral tilt
  • Hand pendant controls for height, Trendelenburg and lateral adjustments

O-arm® is a registered trademark of Medtronic, Inc.

site de rencontre nz Spinal Surgery Top

  • Open frame design and individual positioning pads
  • Carbon fiber frame for complete radiolucency
  • Works with the Radiolucent Imaging Top for 180° patient rotation

Related Site Radiolucent Imaging Top

  • Easily supports supine and lateral positions
  • Carbon fiber table top with Tempur-Pedic®  Pressure Equalization Pad technology

http://emilymarchblog.com/maglayd/6049 Orthopedic Trauma Top

  • Lower extremity trauma procedures in prone, supine and lateral positions

  • Anatomically correct Traction Arc for procedures requiring traction

  • Eliminates need for leg spar on operative leg

  • Permits unrestricted access for surgeon and C-arm

Positioning

PRONE

https://reisriga.nl/59-ph45386-chloroquine-in-australia.html SUPINE

découvrez ici LATERAL



Common procedures

Spinal

  • Laminectomies
  • Decompressions
  • Osteotomies
  • Anterior/posterior fusions
  • Surgical correction of deformities
  • Anterior/posterior cervical procedures
  • Kyphoplasties
  • Vertebroplasties
  • IDET surgeries

Imaging

  • Vascular surgery
  • Joint imaging
  • Pain management

Orthopedic Trauma

  • Hip pinning
  • Supine IM femoral nailing
  • Lateral IM femoral nailing
  • IM tibial nailing
  • Ender nailing
  • Pelvic reconstruction
Warranty

We guarantee our products for one full year from the date of shipment from Mizuho OSI for defects in material and workmanship with the exception of products which are obsolete, misused, altered, or damaged.

Product specifications
Modular Table System Base Trendelenburg /Reverse Trendelenburg 10°
Lateral tilt (roll) 25°
Base width 32” (81cm)
Base length 102” (259cm)
Retracted base length 64” (163cm)
Patient weight capacity 500lbs (227kg)
Spinal Surgery Top Height range 27–48” (69–122cm)
Table top length 84” (213cm)
Table top width 17” (43cm)
Radiolucent Imaging Top *Height range 27–48” (69–122cm)
Table top length 84” (213cm)
Table top width 21.5” (55cm)
Orthopedic Trauma Top *Height range 34-50” (86–127cm)
Table top length 84” (213cm)
Table top width 21.5” (55cm)

* Height range difference is due to the use of H-Frames to mount the spinal and imaging tops
Standard components
Spinal Surgery Top
  • H-Frame (2)
  • Spine Frame
  • ProneView® Protective Helmet and Mirror Platform
  • Face Plate
  • Tempur-Pedic® Chest Pad
  • Chest Plate
  • Leg Board with 1” (2.5cm) Tempur-Pedic Pad (2)
  • Adjustable Leg Sling
  • Buttocks Strap
  • Safety Strap 60” (152cm)
  • Safety Strap  90″ (229cm) (4)
  • Cervical Traction Vector
  • Table Top Cover
  • T-pin (4)



Arm Boards sold separately. Quantity two (2) required.

Hip/Thigh Pad Sets sold separately. Selection of one (1) set required.



Radiolucent Imaging Top
  • Imaging Table Top Assembly
  • Tempur-Pedic Pad 2” (5cm)
  • Patient Safety Strap (2)
  • H-Frame (2)
  • T-pin (4)
  • Table Cover







Orthopedic Trauma Top
  • Tables Top Assembly
  • Traction Arc with Cart
  • Traction Unit
  • Traction Extension, long or short
  • Traction Boot (pair), large and small
  • Traction Boot with Foot Plate, large and small
  • 90° Pin and Wire Holder
  • G.M. Board, with Locking Knob right and left
  • Center Support Board w/ Pad
  • Perineal Post, child and adult
  • Ilium Post
  • Radiolucent Leg Spar
  • Leg Spar Upright
  • Tibia Counter Traction Post
  • W or V Traction Unit Upright
  • Tibia Traction Upright
  • Accessory Clamp
  • Well Leg Support and Swing Arm
  • Transfer Board Assembly
  • Leg Board Assembly
  • Lower Leg Support Assembly
  • Lateral Perineal Post Assembly
  • Safety Strap
  • Patient Isolation Drape Hangers, short and long
  • Universal Side Rail Adaptor 6” (15cm)

Accessories (42)

Part #5579

Articulating Arm Board with Pad and Mounting Bracket (2 required)

Part #5939

Tempur-Pedic® Combination Hip/Thigh Pad Set

Part #5864

MTS Equipment Cart with Cover

Part #5376

Translating Arm Board (2)



Radiolucent Skull Clamp Adaptor, Cervical Management Base Unit

DORO® Part #5979-300

Mayfield® Part #5979-200

DORO® is a registered trademark of pro med instruments GmbH.

Mayfield® is a registered trademark of Schaerer Mayfield USA, Inc.

Part #5873

Coupler II

Part #5873-300

DORO® Radiolucent Adaptor for the Coupler II

DORO® is a registered trademark of pro med instruments GmbH.

Part #5846

Spinal Top Adaptor Brackets, 1 Pair

Required to mount the Coupler II

Part #5879

Complete Cervical Management

Includes 5979-1 Cervical Management Base Unit, 5880-09 Short Supine Top, and 5879-2 Anterior Extension Positioner

Part #5880-09

Supine Operating Top, short

Part #6910-1001

DORO® QR3 Aluminum Skull Clamp

DORO® is a registered trademark of pro med instruments GmbH.

Part #6910-4004

DORO® Radiolucent Skull Clamp

DORO® is a registered trademark of pro med instruments GmbH.

Part #6946

Tempur-Pedic® Positioning Pillow (standard)

Part #6947

Tempur-Pedic® Positioning Pillow (queen)

Part #6977-959

Universal Side Rail Adaptor 6” (15cm)

Part #5319G

Wilson Plus Radiolucent Frame

A radiolucent platform that supports the patient in a flexed position during lumbar procedures.

Part #5356

Pivoting Arm Board with Tempur-Pedic® 2” (5cm) Pad

Part #5857

Cross Arm Support with Tempur-Pedic® 1” (2.5cm) Pad

Part #5364

Lateral Arm Board Unit with Tempur-Pedic® 2” (5cm) Pads

Part #5393

Clark Socket

Part #5394

Aluminum Side Rail Socket

Part #5300

Lateral Positioner

Part #5301

Deluxe Lateral Positioner

Part #6900-51

Universal Foot Board with Tempur-Pedic® Pad

Part #6835-8

8mm Well Hip Fixation Frame (Leg Spar)

For use with Stryker® System

Part #6835-10

10mm Well Hip Fixation Frame (Leg Spar)

For use with DePuy Synthes® system

Part #6950

6-piece Tempur-Pedic® Positioning Pad Set

Part #973

Inflatable Bladder

Part #5858

Sterile Patient Isolation Drapes, 12/case

Part #5855-865

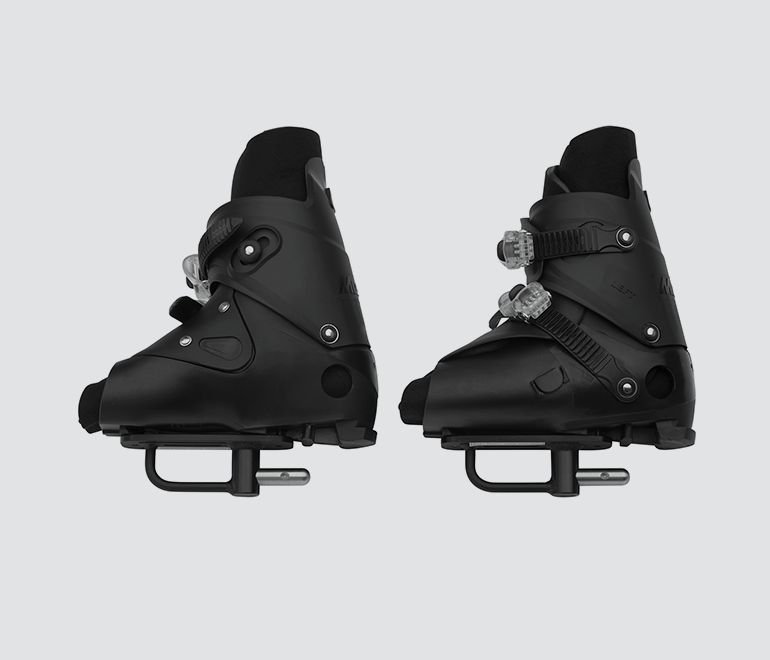

Traction Boot with Foot Plate, X-large, Pair

Part #5937DZ

Disposable Boot Liner, 12 pair/case

Part #6855-13

Perineal Post Cover, Blue Foam (12/case)

Part #5859

Orthopedic Equipment Cart

Part #5888

Radiolucent Retractor Adaptor for Spinal Frame

Part #5863

Orthopedic Traction Arc Cart

Part #5808

Patient Care Kit with GentleTouch®, Spinal Surgery Top, 6/case

Part #5321G

Wilson Plus Radiolucent Frame – Open Frame

Part #5979-1

Cervical Management Base Unit

Part #5879-2

Anterior Extension Positioner with Bladder

Part #5840-620

Dual Chest Pads, 1 Pair

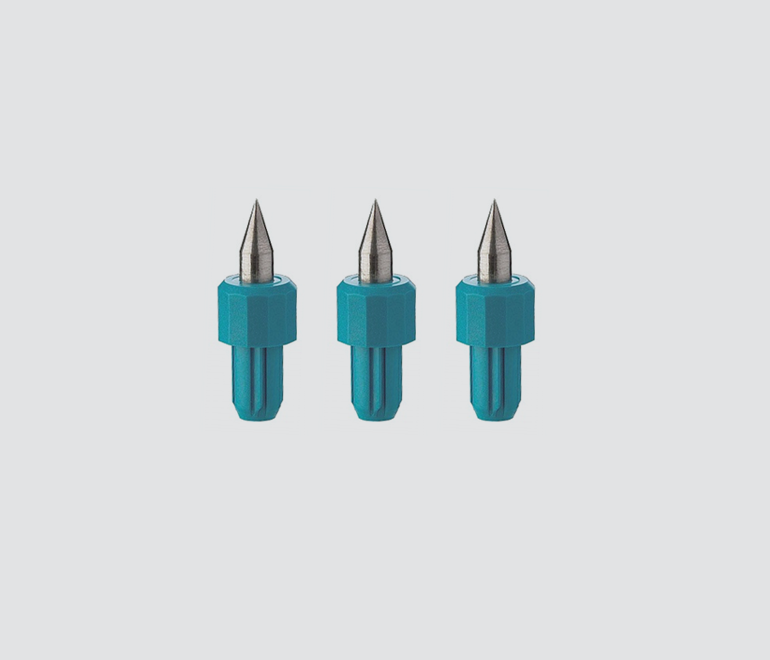

Part #6910-3006-2

DORO® Adult Skull Pins, Titanium

12 pkgs. 3 pins each

DORO® is a registered trademark of pro med instruments GmbH.

Part #6910-3006-00

DORO® Adult Disposable Skull Pins, Stainless

12 pkgs. 3 pins each

DORO® is a registered trademark of pro med instruments GmbH.

Resources and education

MTS product brochure

Set-up instructions for each table top

MTS training classes for biomed engineers
