Orthopedic Trauma Top
For complete Orthopedic Trauma procedures
The Orthopedic Trauma Table Top is part of the Mizuho OSI Modular Table System providing a complete powered, orthopedic table for easy patient positioning and provides for skin or skeletal traction during key trauma procedures.
Read MoreProduct Overview
The Orthopedic Trauma Table Top can be used in conjunction with Mizuho OSI Modular Table Bases 5890, 5891,5892 and 5803. The unique Traction Arc provides for anatomically correct lower extremity skin or skeletal traction for all patient positions during orthopedic trauma procedures.
Orthopedic Trauma Table applicable procedures:
- Hip Pinning
- Femur, supine or lateral IM Nailing
- Ender Nail
- Tibia IM Nailing
- Humeus IM Nailing
Product Photos
-

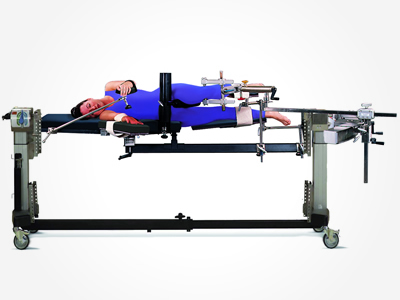

- Femoral Nailing: Lateral Decubitus Position with Bilateral Skin Traction
-

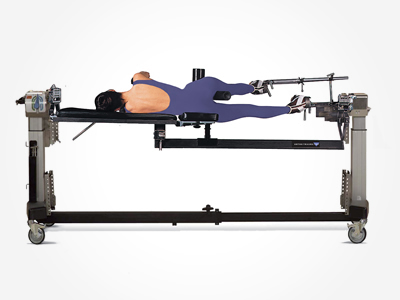

- Femoral Nailing: Supine with Unilateral Skin Traction
-
- IM Nailing Tibia: Supine with Unilateral Skin Traction
-
- Hip Procedure: Supine with Bilateral Skin Traction
-
- IM Nailing Femur: Supine with Unilateral Skeletal Traction
-
- Femoral Nailing: Lateral Decubitus Position with Unilateral Skeletal Traction
-

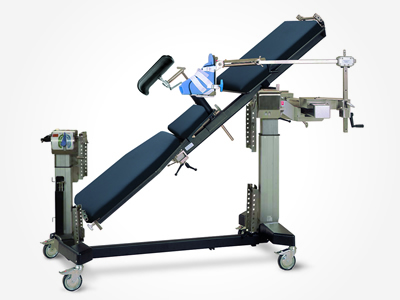

- Compact Storage Position
Product Features
Maximum radiolucency
- Unique composite top enhances radiography
- Allows upper and lower extremity imaging at any angle
Anatomically Correct Traction
- Traction Arc™ provides constant traction on patient’s leg for adduction/abduction
- Eliminates need for leg spar on operative side
- Permits unrestricted access for surgeon and C-Arm
Dual Columns Enhance Stability
- Patient can be centered for added stability and C-Arm accessibility
Lightweight Construction
- Carbon composite construction adds strength and reduces weight
- Steer casters aid table transport
Power Controls
- Hand controller facilitates height, trendelenburg / reverse trendelenburg adjustments
Accessory Cart
- Specially designed for orthopedic accessories storage and retrieval
- Easy transfer of Traction Arc™ onto the table
Modular Base Technology
- Accepts Orthopedic Trauma, Spinal Surgery, Maximum Access, and Imaging Table Tops
- Creates totally comprehensive orthopedic trauma table capabilities
- Allows supine and prone procedures without removing patient
Positioning Capabilities:
- Supine
- Lateral
Product Specifications
Orthopedic Trauma Table Top
| Table top length | 84 in.(213 cm) |
| Table top width | 21-1/2 in. (55 cm) |
| Patient Weight Capacity | 500lb. (227 kg) |
Modular Base
| Table Top Floor Height | 27 in.-48 in. (86 cm) – (127 cm) |
| Base Width | 32 in. (81 cm) |
| Base Length | 102 in. (259 cm) |
| Retractable Base Length | 64 in. – 102 in. (163 cm) – (259 cm) |
| Trendelenburg/Reverse Trendelenburg | 10° |
| Lateral Tilt | 25° |
| Patient Weight Capacity | 500 lb. (227 kg) |
Standard Components
| 5840-361 | T Pin |
| 5855-120 | 90 Degree Pin & Wire Holder |
| 5855-13 | Traction Slide Assembly |
| 5855-136 | Tibia Counter Traction Assembly |
| 5855-137 | Lateral Perineal Post Assembly |
| 5855-14 | Traction Boot, large |
| 5855-15 | Traction Boot, small |
| 5855-163 | Well Leg Board Assembly |
| 5855-193 | Traction Extension, long (38″) |
| 5855-242 | Ilium Post Assembly |
| 5855-243 | Pad – Counter Traction |
| 5855-271 | Perineal Post, child w/ pad |
| 5855-3000 | Cover, 5855 Orthopedic Trauma Top w/o arc |
| 5855-319 | Center Support Board |
| 5855-345 | Traction Unit |
| 5855-411 | Tibia Traction Upright |
| 5855-838 | Well Leg Basket Assembly |
| 5855-440 | Foot Plate Assy |
| 5855-473 | Pad – lateral extension |
| 5855-518 | G.M. Board, right, w/ locking knob |
| 5855-519 | G.M. Board, left, w/ locking knob |
| 5855-550 | Safety Strap |
| 5855-578 | Traction Extension, short |
| 5855-61 | Accessory Clamp |
| 5855-612 | Drapery Rod Assembly |
| 5855-615 | Head End Drapery Post, Weldment |
| 5855-617 | Foot End Drapery Post, Weldment |
| 5855-628 | Pad – lateral post, lower |
| 5855-644 | Leg Spar Upright |
| 5855-672 | Traction Unit Upright, left |
| 5855-673 | Traction Unit Upright, right |
| 5855-752 | Radiolucent Leg Spar |
| 5855-753 | Well Leg Lower Swing Arm |
| 5855-76 | Lower Leg Support Assembly |
| 5855-8 | Chart Set Assembly for MTS (5855) |
| 6977-959 | Universal Side Rail Adaptor 6 in. (15 cm) |
| 5855-863 | Traction Boot w/ Foot Plate, small, left & right |
| 5855-864 | Traction boot w/ Foot Plate, large, left & right |
| 5855-900 | Table Top Assembly |
| 5855-911 | Transfer Board Assembly |
| 5855-925 | Perineal Post Adult w/ pad for lock pin |
| 5855-930 | Tibia Well Leg Support Assembly |
| 5858-1 | Patient Isolation Drapes, box of 3 |
| 5862 | Kirchner Bow/ Holder |
| 5863 | Orthopedic Traction Arc Cart |
| 5890-81 | Tabletop Support Assembly |
Optional Accessories
| 5356 | Pivoting Arm Board w/ Tempur-Med® Pad |
| 5857 | Cross Arm Support |
| 5393 | Clark Support |
| 6977-959 | Universal Side Rail Adaptor 6 in. (15 cm) |
| 5858 | Top Patient Isolation Drapes, 12/case |
| 5855-865 | Traction Boots, X- Large 1 pair |
| 5855-17 | Traction Boot Liners, large, 24 pack |
| 5855-18 | Traction Boot Liners, small, 24 pack |
| 5364 | Lateral Arm Board Set |
| 5859 | Orthopedic Equipment Cart |
| 10203 | OrangeAid® Gel Closed Head Ring, adult |
| 10302 | OrangeAid® Gel Armboard Pad, long extra-wide |
| 10503 | OrangeAid® Gel Knee Crutch Pads, med, set of 2 |
| 10704 | OrangeAid® Gel Universal Perineal Post Pad |
| 10706 | OrangeAid® Gel Universal Traction Boot Liner |
| 10902 | OrangeAid® Gel Patient Safety Strap (fits 5855-550) |
Order Information and Warranty
| 5855 | Orthopedic Trauma Table Top w/ 500 lbs. Patient Load | |
| 5803 | Advanced Control Modular Base | 120 VAC 60 Hz |
| 5803I | Advanced Control Base | 230 VAC 50/60 Hz |
| 5803J | Advance Control Modular Base | 100 VAC 50/60 Hz |
Warranty: Mizuho OSI guarantees all of its products for a period of one (1) year from date of invoice for defects in material and workmanship with the exception of products which are misused, altered or damaged.
