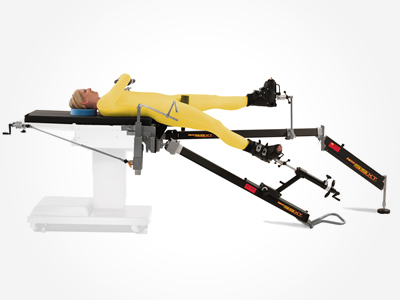

Supine Position for Right Anterior Approach Total Hip Arthroplasty

Hana SSXT®

The ultimate Specialty Surgery Extension for Anterior Approach Total Hip Arthroplasty (AATHA)

A Platform designed for the Anterior Approach Total Hip Arthroplasty (AATHA) and Hip Arthroscopy easily mounted to most general surgery tables, the Hana SSXT® provides patient positioning that enables the surgeon to replace the hip through a single anterior incision without detachment of muscle from the pelvis or the femur.

Read More

Product Overview

Hana SSXT® allows for the safe hyperextension, abduction, adduction and external rotation of the leg required for the AA THA procedure.

The Anterior Approach to total hip Arthroplasty (AA THA) has become the procedure of choice for many surgeons and patients alike. Since 2005, the Hana® Orthopedic Table has been used to successfully position patients in thousands of these procedures. Knowing it is a vital instrument for the procedure, surgeons are reluctant to attempt the AA THA without a Hana® table. the Hana SSXT® now offers many of the features from the full Hana® Table and is available to expand the capability of your general surgery table to successfully perform AA THA.

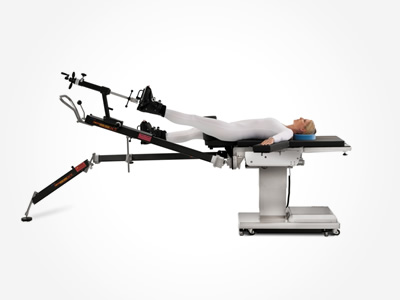

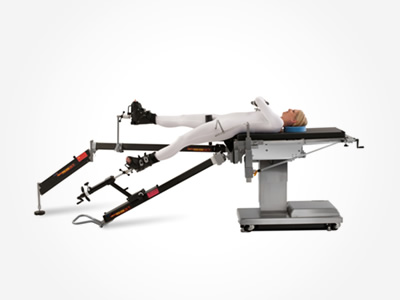

Product Photos



Product Features

– Fits most general surgery tables
– Easy set-up and removal
– Exceptional maneuverability
– Extensive imaging capability
– Controlled femoral lift
– Precise patient positioning

Positioning Capabilities:
– Supine

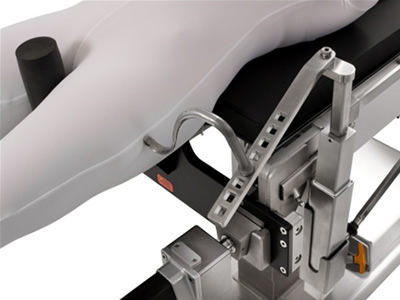

Proprietary Femoral Lift
– Allows precise femoral lift control
– Improves surgical access for femoral canal prep and femoral component placement

Spar and Traction Boot Advantages
– Lightweight, carbon fiber spar construction
– Provides solid support of lower extremities
– Allows precise control and stability of lower extremity position, manipulation and – traction Spars include Spherical Spatial Positioning System SSPS™

Extensive Imaging Capability
– Radiolucent leg spars provide uninterrupted imaging
– Surgeon can intraoperatively confirm implant placement and accuracy of leg length
– Unrestricted C-Arm access to lower extremities

Product Specifications

Table Extension Length 87in. (221cm)
Average Overall Length 130in. (330cm)
Operative Leg Spar Articulation 28° up-35° down 20° adduction-45° abduction
Patient Weight Capacity 350lbs. (159.1kgs)

Standard Components

6870 Hana SSXT® Standard Components

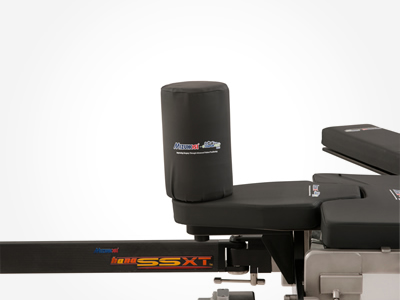

3369 Perineal Post, Large Diameter (6″)
5855-61 Accessory Clamp
6850-485 Traction Boots, Small Left & Right
6850-486 Traction Boots, Large Left & Right
6870-10 Spar Mount Assembly, Hana SSXT®
6870-29 Upright Assembly, Well Leg
6870-39 Table Pad Body, Hana SSXT®
6870-40 Table Pad Perineal, Hana SSXT®
6870-6 Well Leg Spar Assembly
6870-7 Traction Spar Assembly
6875-399 Traction Hook Extension 1
6850-413 Perineal Post, Adult
6850-480 Traction Lifter
6850-918 Femoral Hook, Right
6850-919 Femoral Hook, Left
6870-41 Hand Crank Assembly
6870-45 Saddle Assembly Traction Lifter
6870-90 Femoral Hook Support 1, Hana SSXT®
6870-103 Femur Lift Saddle

6873 Hana SSXT®, 777 Hip Arthroscopy Standard Components

3369 Perineal Post, Large Diameter (6″)
5855-61 Accessory Clamp
6850-485 Traction Boots, Small Left & Right
6850-486 Traction Boots, Large Left & Right
6870-10 Spar Mount Assembly, Hana SSXT®
6870-29 Upright Assembly Well Leg
6870-40 Table Pad Perineal, Hana SSXT®
6870-6 Well Leg Spar Assembly
6870-7 Traction Spar Assembly
6875-399 Traction Hook Extension
6873-1 Femur Lift Accessories Kit, Image 777

6874 Hana SSXT® Hip Arthroscopy Only Standard Components

3369 Perineal Post, Large Diameter (6″)
5855-61 Accessory Clamp
6850-485 Traction Boots, Small Left & Right
6850-486 Traction Boots, Large Left & Right
6870-10 Spar Mount Assembly, Hana SSXT®
6870-29 Upright Assembly Well Leg
6870-39 Table Pad Body, Hana SSXT®
6870-40 Table Pad Perineal, Hana SSXT®
6870-6 Well Leg Spar Assembly
6870-7 Traction Spar Assembly
6875-399 Traction Hook Extension

6876 Hana SSXT® MQT Standard Components

3369 Perineal Post, Large Diameter (6″)
5855-61 Accessory Clamp
6850-485 Traction Boots, Small Left & Right
6850-486 Traction Boots, Large Left & Right
6870-29 Upright Assembly Well Leg
6870-40 Table Pad Perineal, Hana SSXT®
6870-6 Well Leg Spar Assembly
6870-7 Traction Spar Assembly
6875-399 Traction Hook Extension
6876-10 Spar Mount Assembly, Hana SSXT®, MAQUET 1140
6870-2 Femur Lift Accessories Kit

6877 Hana SSXT® AUS Standard Components

3369 Perineal Post, Large Diameter (6″)
5855-61 Accessory Clamp
6850-485 Traction Boots, Small Left & Right
6850-486 Traction Boots, Large Left & Right
6870-29 Upright Assembly Well Leg
6870-39 Table Pad Body, Hana SSXT®
6870-40 Table Pad Perineal, Hana SSXT®
6870-6 Well Leg Spar Assembly
6870-7 Traction Spar Assembly
6875-399 Traction Hook Extension
6877-10 Spar Mount Assembly, Hana SSXT®, Denyer XRT5000-ST
6870-2 Femur Lift Accessories Kit

Optional Accessories

6850-413 Perineal Post, Adult
6870-500 Hana SSXT® Cart
6850-170 Leg Support, Accessory
5855-61 Accessory Clamp
6850-487 Traction Boots X-Large Left & Right

Hana®, Hana SSXT® and ProFx® Patient Care Kits

6855 9” Supine Headrest Donut, Padded Perineal Post Cover, Leg Spar Ball Joint Protectors, and Adjustable Arm Board Pads with Soft Straps 6 per case

Individual Patient Care Kit Components For Use with Hana®, Hana SSXT® and ProFx®

5929DZ 6″ Perineal Post Covers 12/cs
5937DZ Disposable Traction Boot Liner 12/cs
6855-13 3″ Perineal Post Covers packaged 12 per bag
6856-22 Leg Spar Ball Joint Protectors packaged 12 pair per bag
5932 NervPro® Ulnar Protection Pad packaged 6 per bag
5858 Sterile Patient Isolation Drapes packaged 12 per bag
5917DZ 27″ Soft Arm Board Straps packaged 12 per bag
6855-12 Adjustable Arm Board Pad 6/cs
1921 9” Headrest Donut 24/cs
1922 7” Headrest Donut 24/cs

Order Information and Warranty

6870 Hana SSXT® For Total Hip Arthroplasty and Hip Arthroscopy
6874 Hana SSXT® Hip Arthroscopy Unit

Warranty: Mizuho OSI guarantees all of its products for a period of one (1) year from date of invoice for defects in material and workmanship with the exception of products which are misused, altered or damaged.
