The Foundation of the Modular Table System

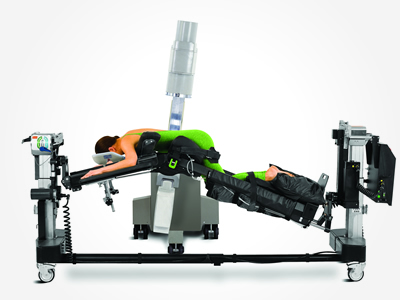

The Advanced Control Base is the primary component of the Mizuho OSI Modular Table System. It is designed to easily interface with a  C-arm and be utilized with three, interchangeable tops which are specifically designed to support patient positioning for a variety of surgical procedures.

Read More

Product Overview

Types of Procedures:
- Orthopedic Fracture and Trauma
- Pelvic Reconstruction
- Orthopedic and Neuro Spine
- Pain Management
- General

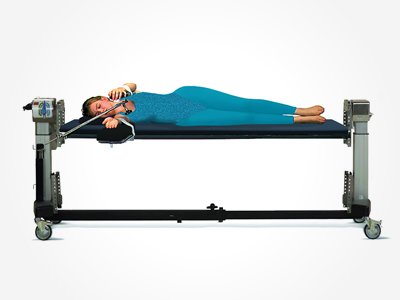

Product Photos

Product Features

- Dual column design, easy C-arm access
- I-beam retractable for ease of storage
- Designed for use with gimbaled, Mizuho OSI modular tops
- AC and battery operation
- Powered lateral tilt and table articulations
- Hand Pendant controls Height, Lateral Tilt (roll) and Trendelenburg /Reverse Trendelenburg
- Hand Pendant provides visual confirmation of Rotation Lock Status, Rotation Safety Lock Status, Tilt Drive Status and Battery Status
- Steer caster, foot end of base
- Cord wrap
- Quiver for T-pin storage
- H-Frame storage brackets
- Four independent locking casters

Product Specifications

Height Range with Table Top 27 in – 48 in. (69cm. – 122 cm.) dependent on table system
Modular Base Width 32 in. (81 cm.)
Modular Base Length 102 in. (259 cm.)
Length of Base Retracted 64 in. (163 cm.)
Trendelenburg /Rev Trendelenburg 10 degrees
Lateral Tilt (roll) 25 degrees
Patient Weight Capacity 500 lbs. (227 kg.) dependent on table system

Standard Components

6807-1 Hand Pendant

Order Information and Warranty

5803 Advanced Control Modular Base 120V ~ 60Hz
5803I Advanced Control Modular Base 220/230V ~ 50/60 Hz
5803J Advanced Control Modular Base 100V ~ 50/60 Hz

Warranty: Mizuho OSI guarantees all of its products for a period of one (1) year from date of invoice for defects in material and workmanship with the exception of products which are misused, altered or damaged.
